from pathlib import Path
import glob
data_path = Path(os.getenv("LLMCAM_DATA", "../data")).absolute()
files = sorted(glob.glob(f"{data_path}/cap_*.jpg"))
files = [ file for file in files if "santaclausvillage" in file ]
files = files[:2]Plots from GPT
Python module to generate plot from json data and download an plotted image via OpenAI API.
Generating plots from YOLO and GPT vision models
From the current modules in vision, we can retrieve information about an image. These information includes the counts of objects per class. Therefore, we can plot a bar chart for counts of objects of one class throughout the image list.
For this example, let us use captured images from Santa Claus Village to plot the number of people.

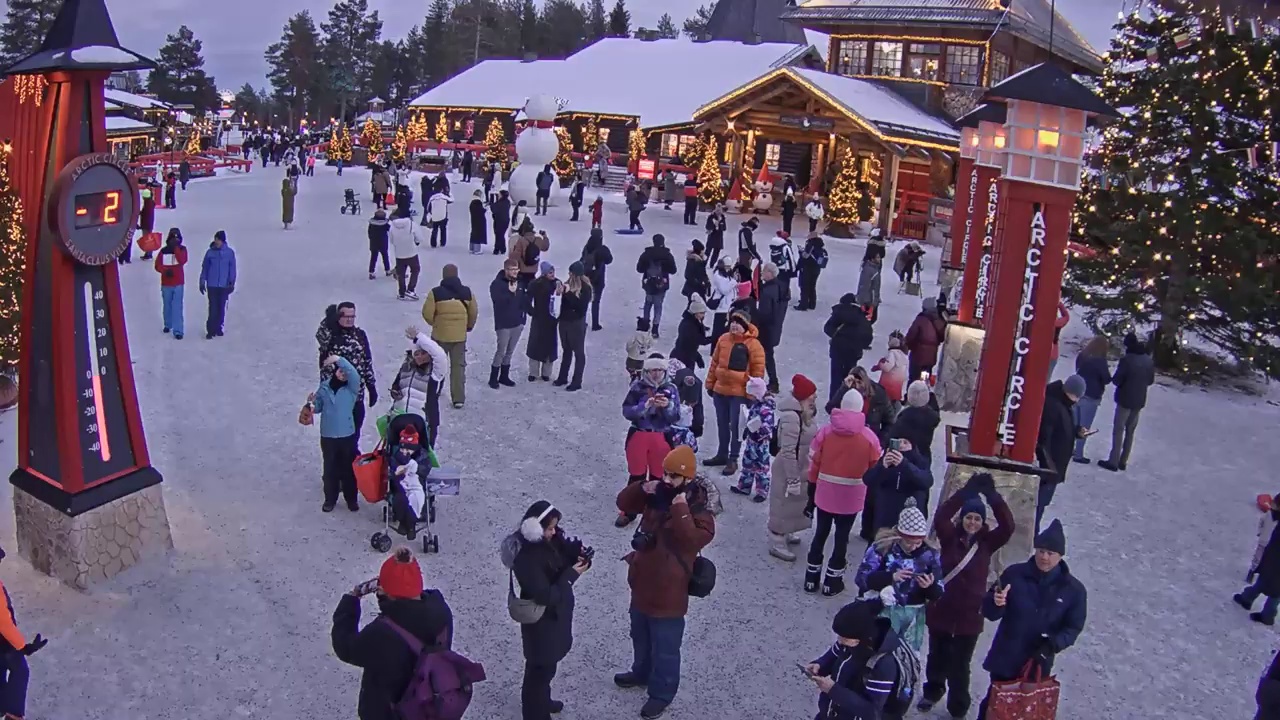

from IPython.display import display, Image
display(Image(files[0]))

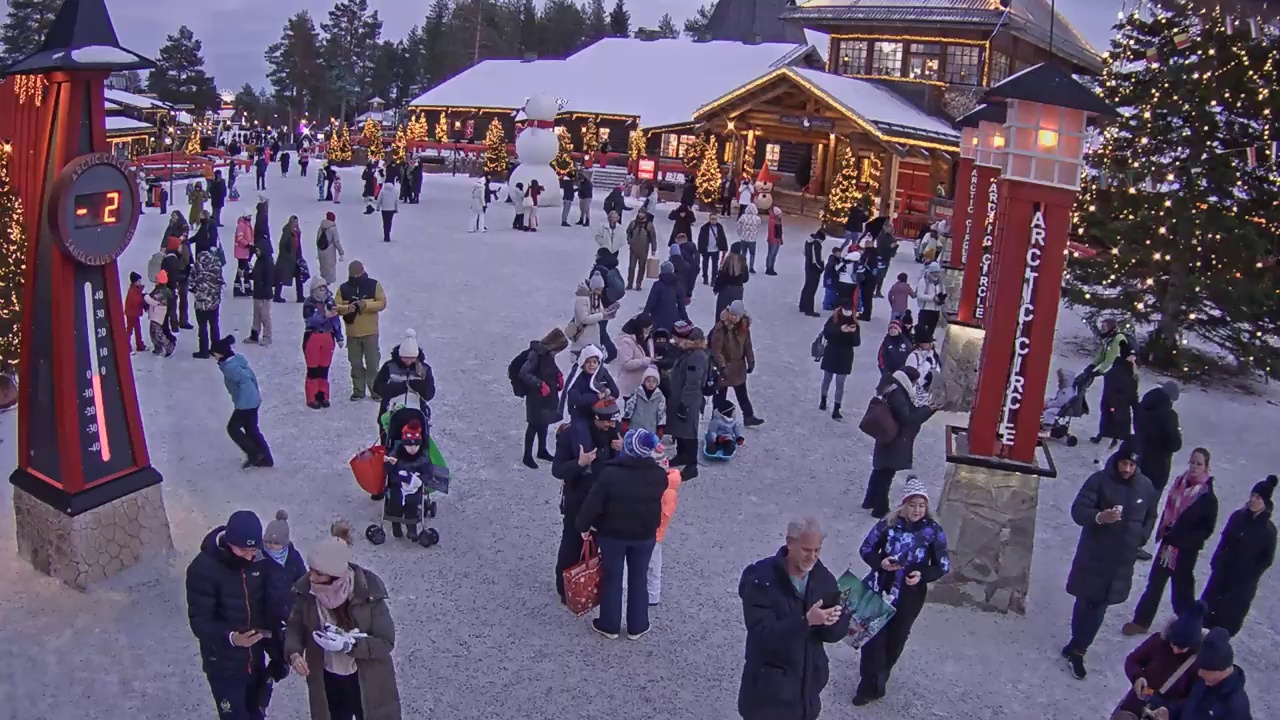

from IPython.display import display, Image
display(Image(files[1]))
# Define object to count

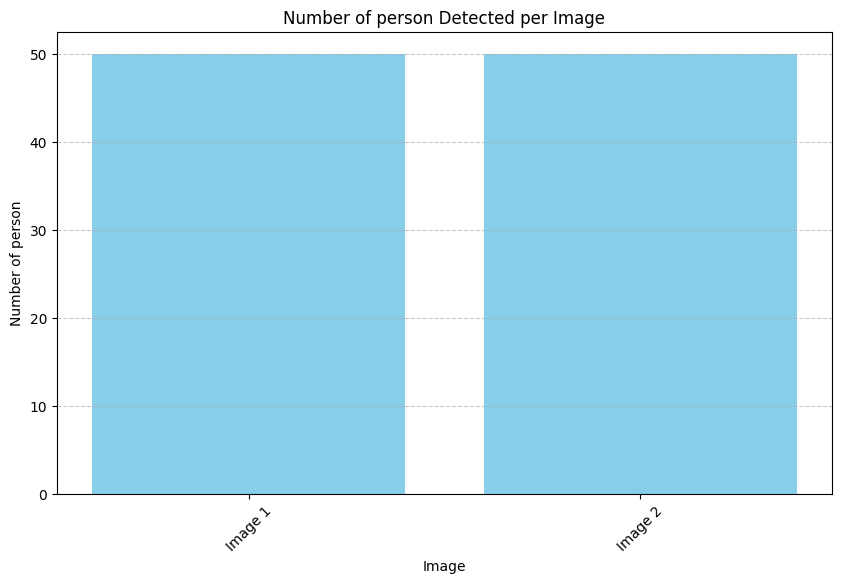

obj = "person"Plotting by GPT-4v
# Initiate counts per image
count = []
# Count objects in images
for image in files:
info = json.loads(ask_gpt4v_about_image_file(image))
count.append(info.get(obj, 0))
count[50, 50]plt.figure(figsize=(10, 6))
plt.bar(files, count, color='skyblue')
plt.title(f'Number of {obj} Detected per Image')
plt.xlabel('Image')
plt.ylabel(f'Number of {obj}')
plt.xticks(range(len(files)), [f"Image {i+1}" for i in range(len(files))], rotation=45)
plt.grid(axis='y', linestyle='--', alpha=0.7)
plt.show()

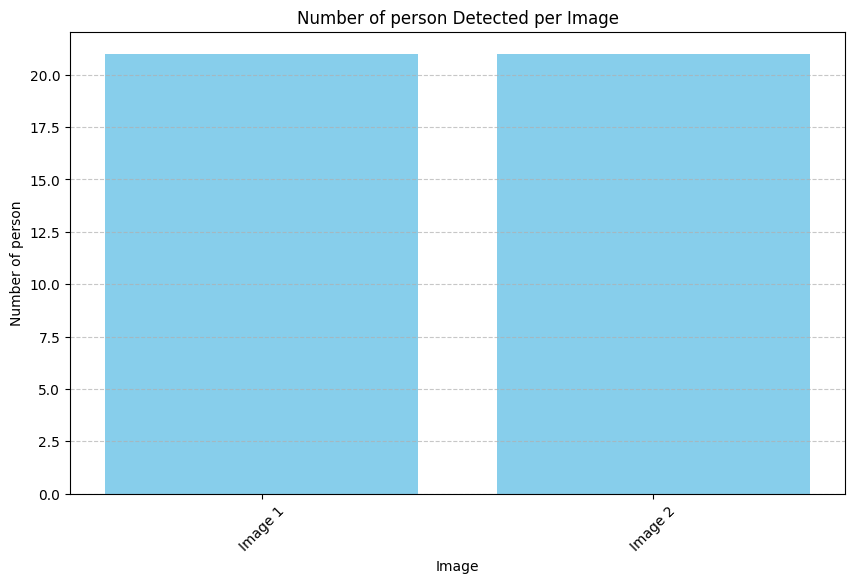

Plotting by YOLO
# Initiate counts per image
count = []
# Count objects in images
for image in files:
info = json.loads(detect_objects(image))
count.append(info.get(obj, 0))
count
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2024.12.11_13:59:40_santaclausvillage.jpg: 384x640 21 persons, 2 handbags, 74.3ms
Speed: 2.0ms preprocess, 74.3ms inference, 582.3ms postprocess per image at shape (1, 3, 384, 640)
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2024.12.11_14:02:23_santaclausvillage.jpg: 384x640 21 persons, 1 backpack, 3 handbags, 18.2ms
Speed: 2.1ms preprocess, 18.2ms inference, 1.9ms postprocess per image at shape (1, 3, 384, 640)[21, 21]plt.figure(figsize=(10, 6))
plt.bar(files, count, color='skyblue')
plt.title(f'Number of {obj} Detected per Image')
plt.xlabel('Image')
plt.ylabel(f'Number of {obj}')
plt.xticks(range(len(files)), [f"Image {i+1}" for i in range(len(files))], rotation=45)
plt.grid(axis='y', linestyle='--', alpha=0.7)
plt.show()

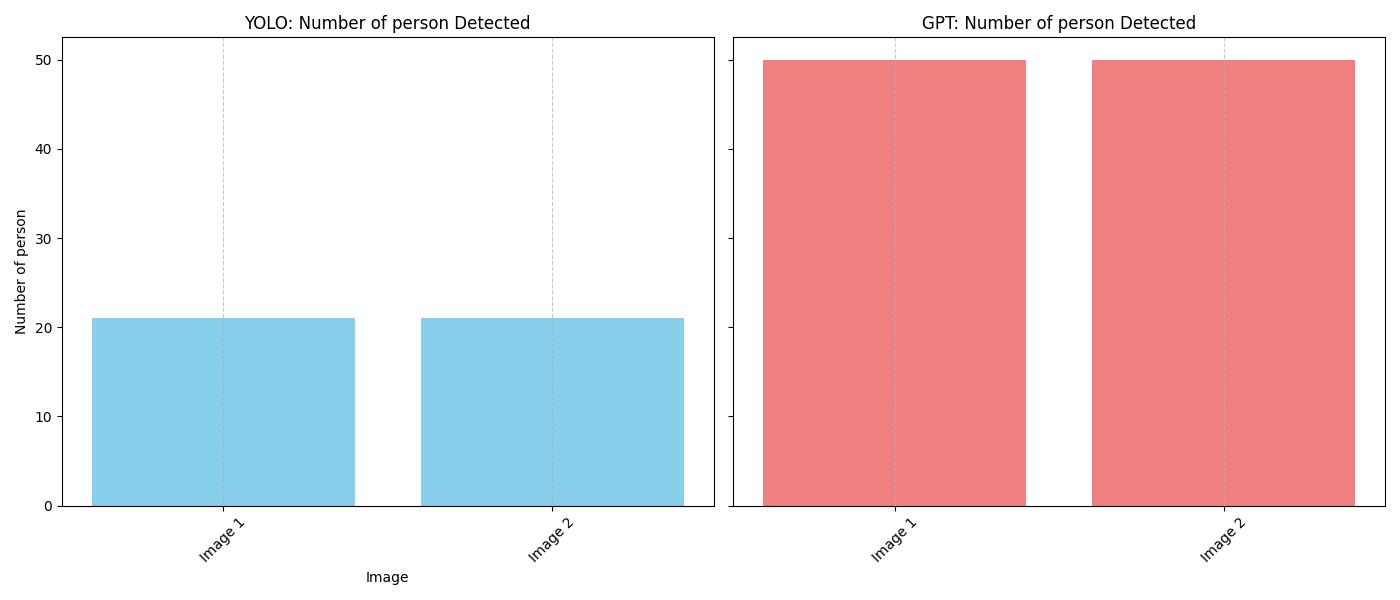

Combined and modularized function
We can combine these plots with pyplot.subplots and summarize this whole process into a single function to be integrated into our GPT Function calling framework:
plot_object
plot_object (images:list[str], object:str, methods:list[str]=['gpt', 'yolo'])
Generate (only when requested) a bar plot displaying the number of instances of a specified object detected in a list of images, accepting only objects in singular form. Change the methods name to lowercase before passing to the function
| Type | Default | Details | |
|---|---|---|---|
| images | list | List of images to be extracted | |
| object | str | Object to detect | |
| methods | list | [‘gpt’, ‘yolo’] | List of methods to use for extracting information. The available methods are “gpt” and “yolo” |
res = plot_object(files, "person", ["gpt", "yolo"])
path = json.loads(res).get("path")
display(Image(path))
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2024.12.11_13:59:40_santaclausvillage.jpg: 384x640 21 persons, 2 handbags, 9.5ms
Speed: 1.7ms preprocess, 9.5ms inference, 3.4ms postprocess per image at shape (1, 3, 384, 640)
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2024.12.11_14:02:23_santaclausvillage.jpg: 384x640 21 persons, 1 backpack, 3 handbags, 8.8ms
Speed: 1.7ms preprocess, 8.8ms inference, 2.0ms postprocess per image at shape (1, 3, 384, 640)
Simulated GPT framework
This section tests integrating with our current GPT framework. This function can be used in combination with previous functions in the vision module and file_manager.list_image_files:
from llmcam.core.fc import *
from llmcam.core.fn_to_schema import function_schema
from llmcam.utils.file_manager import list_image_files
tools = [
function_schema(list_image_files, "Local files"),
function_schema(plot_object, "Plot objects"),
]
messages = form_msgs([
("system", "You are a helpful system administrator. Use the supplied tools to assist the user."),
("user", "List local image files from Santa Claus Village.")
])
complete(messages, tools=tools)
print_msgs(messages)>> System:
You are a helpful system administrator. Use the supplied tools to assist the user.
>> User:
List local image files from Santa Claus Village.
>> Assistant:
Here are the local image files from Santa Claus Village: 1.
cap_2025.01.16_18:25:30_santaclausvillage.jpg 2. cap_2025.01.14_02:33:41_santaclausvillage.jpg 3.
cap_2025.01.14_01:52:14_santaclausvillage.jpg 4. cap_2024.12.11_14:02:23_santaclausvillage.jpg 5.
cap_2024.12.11_13:59:40_santaclausvillage.jpg 6. cap_2024.12.09_20:33:06_santaclausvillege.jpg 7.
cap_2024.12.09_20:32:50_santaclausvillege.jpg 8. cap_2025.01.14_02:14:33_santaclausvillage.jpg Let
me know if you need further assistance!# Continue the conversation and plot using both methods
messages.append(form_msg("user", "Plot the number of people detected in the images using both YOLO and GPT-4 Vision. Tell me the path to the plot."))
complete(messages, tools=tools)
print_msgs(messages)
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2025.01.16_18:25:30_santaclausvillage.jpg: 384x640 20 persons, 1 handbag, 35.1ms
Speed: 3.0ms preprocess, 35.1ms inference, 4.5ms postprocess per image at shape (1, 3, 384, 640)
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2025.01.14_02:33:41_santaclausvillage.jpg: 384x640 (no detections), 28.0ms
Speed: 2.4ms preprocess, 28.0ms inference, 0.8ms postprocess per image at shape (1, 3, 384, 640)
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2025.01.14_01:52:14_santaclausvillage.jpg: 384x640 1 person, 11.7ms
Speed: 2.0ms preprocess, 11.7ms inference, 4.5ms postprocess per image at shape (1, 3, 384, 640)
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2024.12.11_14:02:23_santaclausvillage.jpg: 384x640 21 persons, 1 backpack, 3 handbags, 10.6ms
Speed: 1.4ms preprocess, 10.6ms inference, 1.3ms postprocess per image at shape (1, 3, 384, 640)
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2024.12.11_13:59:40_santaclausvillage.jpg: 384x640 21 persons, 2 handbags, 9.7ms
Speed: 1.5ms preprocess, 9.7ms inference, 1.3ms postprocess per image at shape (1, 3, 384, 640)
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2024.12.09_20:33:06_santaclausvillege.jpg: 384x640 12 persons, 25.9ms
Speed: 1.7ms preprocess, 25.9ms inference, 1.5ms postprocess per image at shape (1, 3, 384, 640)
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2024.12.09_20:32:50_santaclausvillege.jpg: 384x640 9 persons, 1 potted plant, 13.1ms
Speed: 1.8ms preprocess, 13.1ms inference, 1.6ms postprocess per image at shape (1, 3, 384, 640)
image 1/1 /home/nghivo/tinyMLaaS/llmcam/data/cap_2025.01.14_02:14:33_santaclausvillage.jpg: 384x640 (no detections), 11.6ms
Speed: 1.8ms preprocess, 11.6ms inference, 1.0ms postprocess per image at shape (1, 3, 384, 640)
>> System:
You are a helpful system administrator. Use the supplied tools to assist the user.
>> User:
List local image files from Santa Claus Village.
>> Assistant:
Here are the local image files from Santa Claus Village: 1.
cap_2025.01.16_18:25:30_santaclausvillage.jpg 2. cap_2025.01.14_02:33:41_santaclausvillage.jpg 3.
cap_2025.01.14_01:52:14_santaclausvillage.jpg 4. cap_2024.12.11_14:02:23_santaclausvillage.jpg 5.
cap_2024.12.11_13:59:40_santaclausvillage.jpg 6. cap_2024.12.09_20:33:06_santaclausvillege.jpg 7.
cap_2024.12.09_20:32:50_santaclausvillege.jpg 8. cap_2025.01.14_02:14:33_santaclausvillage.jpg Let
me know if you need further assistance!
>> User:
Plot the number of people detected in the images using both YOLO and GPT-4 Vision. Tell me the path
to the plot.

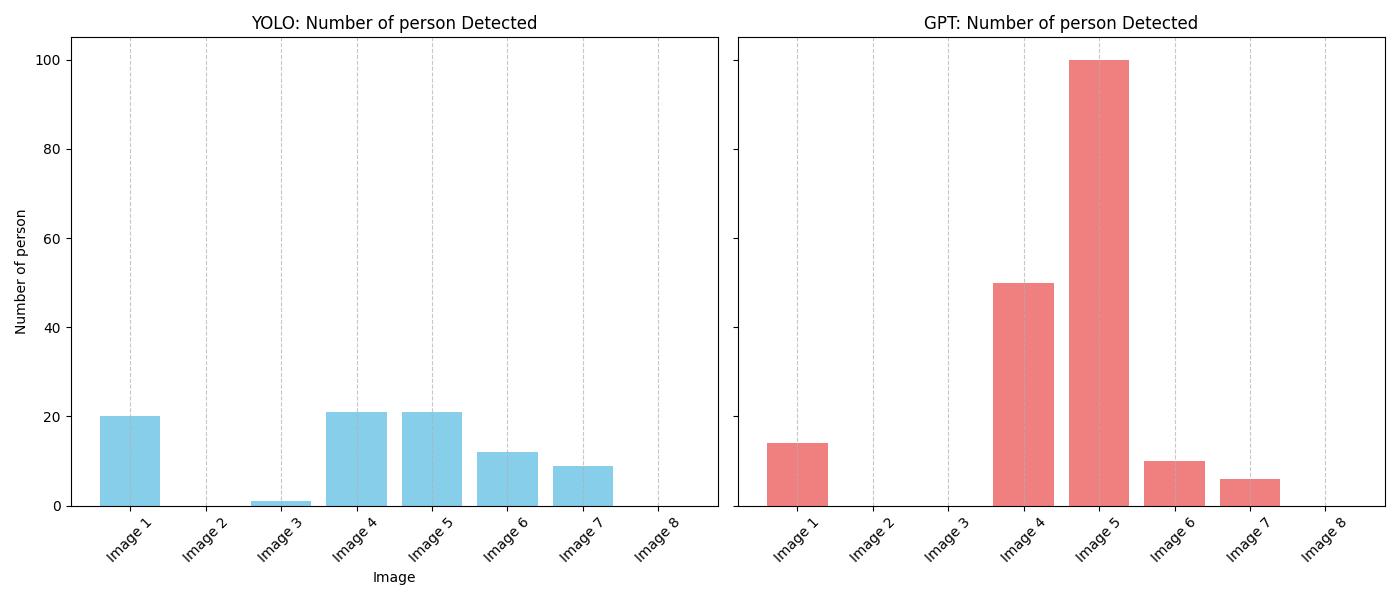

>> Assistant:
The plot showing the number of people detected in the images using both YOLO and GPT-4 Vision has
been generated. You can find the plot at the following path:
`/home/nghivo/tinyMLaaS/llmcam/data/667_object_count_plot.jpg`display(Image('/home/nghivo/tinyMLaaS/llmcam/data/667_object_count_plot.jpg'))
